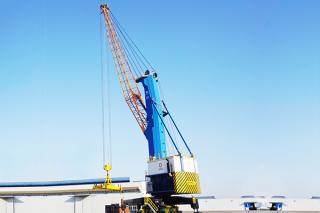

50t mobile harbour crane GHC50
The GHC series designed for different kinds of terminals: container terminal, bulk terminal and multi-purpose terminal along all type of vessels from barges to super post-panamax. A variety of cargos can be handled with GHC, containers, general cargo & project cargo and bulk cargo.
Share This Product:
  • Genma brochure_Mobile harbor crane-EN.pdf Genma brochure_Mobile harbor crane-EN.pdf
  • Genma Brochure_Product overview-EN.pdf Genma Brochure_Product overview-EN.pdf
  • Reference
  • Testimonials
  • Features
  • Parameters
  • Overview
  • Model: GHC100TD
    Undercarriage: Tyre-type
    Client: Paradip
    Qty: 3
    More details
  • Model: GHC60
    Undercarriage: Rail-type
    Client: Runhe port
    Qty: 2
    More details
  • Model: GHC100
    Undercarriage: Tyre-type
    Client: MIP
    Qty: 2
    More details
  • Model: GHC200
    Undercarriage: Rail-type
    Client: Ruitai
    Qty: 1
    More details
  • Model: GHC63
    Undercarriage: Tyre-type
    Client: Jiangsu Wenqiang Ocean Engineering Co., Ltd
    Qty: 1
    More details
  • High performance engine
    Genma only choose top band engine, with characters of fuel-efficient, long life cycle, high performance and environmental.
  • Hydraulic system
    Winch system, slewing system and luffing system operate based on powerful hydraulic system. Precise control will be done while with low fuel consumption and easy maintenance.
  • 3 types undercarriages
    Rail-type, X-bracket or wheeled-type can be selected based on your working condition.
  • Flexible and easy to move
    360-degree mobility is available.
  • Electric system
    Genma only choose top brand electric components to make your maintenance more easier and guarantee the performance of the equipment.
  • User-friendly design
    The operation room is designed based on broad view, comfort and easy operation. Noiseless room and anti-glare toughened glass further promise the safe and effective operation.
  • Safety guarantee
    The whole structure uses high-strength plate and designed in variable cross-section. Using a truss boom, the cylinder is located above the boom to avoid the collision of the cargo.
  • Local service team, quick response
    For each project we will organize the service team of local people with expertise and rich experience. Local spare parts warehouse and quick response service team, no need to worry about the communication barriers and response speed.
Rated Capacity & Classification
Hook (Heavy lift) 50t A3
Spreader (Container handling) 25t A7
4-rope grab (Bulk handling) 20t A8

Main Performance Data

Working speed
Max Hoist speed 90 m/min
Max Slewing speed 1.6 rpm
Max Luffing speed 65 m/min
Max Travelling speed 5 km/h

Working radius
Minimum radius 10 m
Maximum radius 36 m

Hoist Height
Above quay (at max radius) 16 m
Below quay 10 m

Dimensions
Overall width of crane -in working condition 12.7 m
Overall width of crane - for travel(min) 7.9m
Overall height: - tower in working position 22.3m

Ground pressure
On wheels in travelling condition 4.95t
On stabilizers with max load: -with standard footings 2.05kg/cm2
Average pressure on area occupied by the crane 1.47t/m2

The lifting capacity range of GHC is 50-210t while the working radius covers from 36 to 58 meters.

Besides the efficient and durable operation, you will find it is very easy to maintain and operation. And of course we never forget the ergonomic and environmentally friendly design.

3 types undercarriages can be chose, tyre-type, rail-type and X-bracket.
